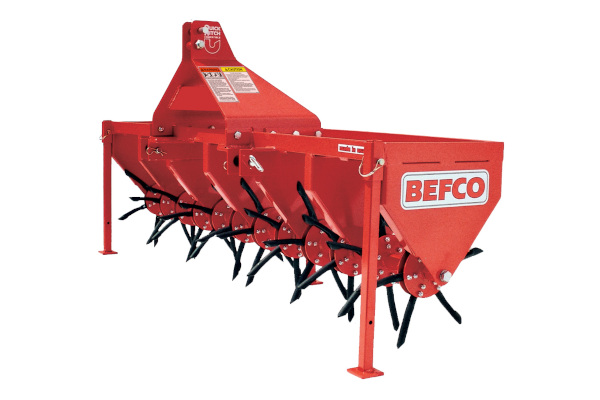

Befco BCA-048
Features
- Hub spacing 6 1/2".
- Special high quality stop smoking products tensile steel shafts on the rotors.
- 2 bronze bushings per rotor.
- 8 gauge formed steel support panels.
- All panels support rotors from all sides.
- 1 1/4" rotor support shaft.
- 3/8" formed cat. 1 "A" frame.
- Machine equipped with spikes instead of spoons is available on request.
- 3 point linkage, Cat. 1.
- 6 spoons per hub.
- All flanges are welded to rotors.
- Flange thickness 3/16".
- 3 support stands.
- 3/4" hardened steel spoons.
- Front or rear tractor mounting.
Specifications
| Model | BCA-048 |
| HP | 20-50 |
| Hitch | Cat. 1 |
| Working width | 48" |
| Overall width | 54" |
| Weight lbs | 284 |
| Ship lbs | 389 |
| # of Rotors | 4 |
| # of Hubs | 8 |
| # of Spoons | 48 |
| Spoon penetration | 4 1/2" |
| Weight area | 12"x15" |
| Additional weight lbs | 156 |
