Befco D90-072

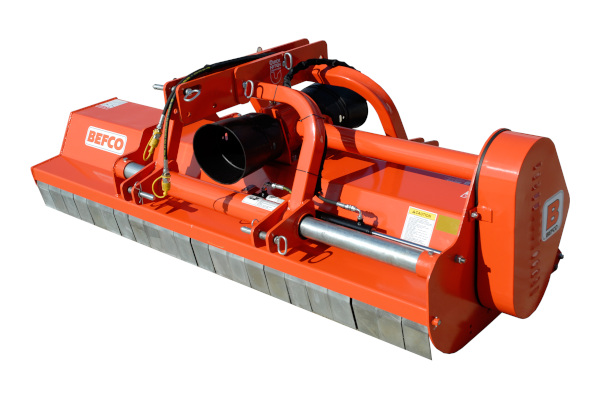

Befco D90-072 for sale at Phillips Equipment Corp, Virginia

Double tap to zoom

Befco D90-072 for sale at Phillips Equipment Corp, Virginia



Features

  • Cutting heights: from 3/4" to 5".
  • 3 Point linkage, cat. 1 & 2.
  • Front & rear tractor mounting.
  • Driveline with overrunning clutch (1 3/8" ASAE cat. 6).
  • Belt driven transmission with four heavy duty XPBX type belts and manual belt tensioner.
  • Hydraulic side-shift with dual remotes.
  • 12" side-shift on 60" model, buy sleeping aids products, 16" on 72" & 88" models.
  • Heavy duty hammer type blades.
  • 2" cutting capacity.
  • Rotor diameter 5 1/4", 5/16" thick rotor tube.
  • Height adjustment rear roller with scraper standard.
  • Rear roller diameter 6 5/8", 3/16" thick rotor tube.



Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

Reversible “A” frame
“A” frame design supports weight of the unit front and back and allows for quick front or rear tractor mounting.

Gearbox by BEFCO
Gearboxes are manufactured by BEFCO and always assembled with top of the line gears, bearings and seals to ensure years of trouble free usage.

Cast iron rotor supports
Our cast iron rotor supports are designed and built in-house and assembled using spherical self-aligning bearings.

Hydraulic offset cylinder
All D90’s are equipped with a hydraulic cylinder that allows operator to offset the mower to the right of the tractor by 12″ on D90-060 and 16″ on D90-072 and D90-088 models.

Heavy duty belt driven transmission
Belt driven transmission with four heavy duty XPBX type belts and manual belt tensionner

Heavy 2 lbs. hammer blades
Heavy hammer blades allow shredder to mow down material up to 2″ in diameter making it ideal for mowing in orchards, vineyards and set-aside fields.

Height adjustment roller
Adjustable cutting height from 3/4″ to 5″ is set by raising and lowering the rear roller.

Clockwise rotor rotation
Clockwise rotor rotation allows cut debris to be thrown up and around the rotor and then straight down into the ground, reducing the risk caused by thrown objects.

ASAE Cat. 1 & 2 quick hitch compatible
Compatible with ASAE Cat. 1 and 2quick hitches.

Specifications

Model D90-072
HP 50-90
Working width 72"
Overall width 81"
Weight lbs 1,345
Ship lbs 1,450
Rotor rpm 1,961
Blades tip speed (ft/min) 8,268
# of Blades 20
Cutting height 3/4"-5"
# Belts & types 4 XPBX
Driveline 1 3/8" ASAE cat. 6 overrunning clutch
