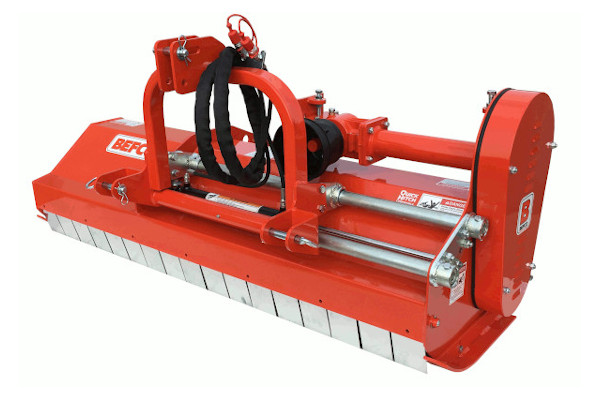

Befco H40-S72

Befco H40-S72 for sale at Phillips Equipment Corp, Virginia

Double tap to zoom

Befco H40-S72 for sale at Phillips Equipment Corp, Virginia



Features

  • Cutting heights: from 3/4" to 2 3/8".
  • Manual or optional hydraulic side-shift up to 16".
  • Dual rear roller mounting position, inside or outside the cutting chamber.
  • Manual belt tensioner without spring loaded idlers.
  • Choice of fine cut blades at 90° angles, reverse "Y" blades, paddle blades or hammer type blades.
  • Dethatching blades available.
  • Adjustable cutting height roller with scraper or self cleaning roller when mounted inside the cutting chamber.
  • Heavy duty shielded PTO shaft (1 3/8" ASAE cat. 3)
  • Sealed rotor bearings.
  • Front and rear tractor mounting.
  • Heavy duty, one piece balanced steel pulleys.
  • Two heavy duty reinforced notched belts (SPBX).
  • 3 Point linkage, cat. 1.
  • Standard front rubber safety shielding or optional front steel deflectors.



Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

Up to 16″ of side shift
H40-S is equipped standard with a manual or optional hydraulic side-shift that allows mower to be offset up to 16″. With the standard manual offset the operator can choose one of five different pre-set positions, while with the optinal hydraulic side shift, the operator has infinite adjustments.

Roller mounted in standard position
When roller is mounted in the standard position most of the cut grass will be discharged in front of the roller.

Roller mounted in standard position
When roller is mounted in the standard position most of the cut grass will be discharged in front of the roller.

Manually loaded belt tensionners
Our manually loaded belt tensionning system has allowed us to remove idlers which often turn out to be the root cause of most belt failures.

Heavy duty, pulleys and belts
H40-S mowers are equipped standard with heavy duty individually balanced steel pulleys and SPBX type reinforced notched belts. Pulleys have over 180˚ belt coverage without the use of idlers.

Sealed rotor bearings and low profile rotor supports
Our sealed rotor bearings never require external grease.
The low profile of the rotor supports means the operator can mow closer to obstacles without risking to impact the supports against foreign objects.

Clockwise rotor rotation
Clockwise rotor rotation allows cut debris to be thrown up and around the rotor and then straight down into the ground, reducing the risk caused by thrown objects.

Specific blades for any application
Only BEFCO offers you the choice of fine cut blades, dethatching blades, reverse “Y” blades, paddle blades or hammers blades allowing the operators to set up the unit specifically for their application.

ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches.

Specifications

Model H40-S72
HP 25-40
Working width 72"
Overall width 76"
Weight lbs 697
Shift lbs 835
Rotor rpm 2,278
Blades tip speed (ft/min) 8,858
# of Blades 76
Cutting height 3/4"-2 3/8"
# Belts & types 2 SPBX
Driveline 1 3/8" ASAE cat. 3
