Befco H70-072

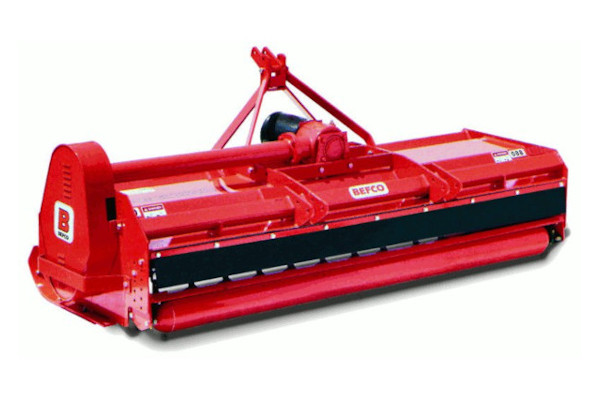

Befco H70-072 for sale at Phillips Equipment Corp, Virginia

Double tap to zoom

Befco H70-072 for sale at Phillips Equipment Corp, Virginia



Features

  • Cutting heights: from 3/4" to 6".
  • Choice of fine cut blades at 90° angles, reverse "Y" blades, paddle blades or hammer type blades.
  • Dethatching blades available.
  • High blade tip speed.
  • Precise blade overlap.
  • Adjustable cutting height roller with scraper.
  • Driveline with overrunning clutch (1 3/8" ASAE cat. 4).
  • Highly engineered & rugged gearbox.
  • Belt shield fender.
  • Front & rear tractor mounting.
  • Electronically balanced rotor.
  • Heavy duty, one piece balanced steel pulleys.
  • Two heavy duty reinforced notched belts (CX).
  • Manual belt tensioner.
  • 3 Point linkage, cat. 1 & 2.
  • Floating top link.
  • Forward & reverse rotor rotation; clockwise is standard.
  • Rotor supports with spherical roller bearings.
  • Rubber safety shielding.
  • Replaceable skids.



Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

Gearbox by BEFCO
Gearboxes are manufactured by BEFCO and always assembled with top of the line gears, bearings and seals to ensure years of trouble free usage.

Cast iron rotor supports
Our cast iron rotor supports are designed and built in-house and assembled using spherical self-aligning bearings.

Belt shield fender
H70’s are equipped standard with belt shield fenders to protect the drive system from impacts with foreign objects.

Replaceable side skids
All units are delivered with replaceable side skids.

Clockwise rotor rotation
Clockwise rotor rotation allows cut debris to be thrown up and around the rotor and then straight down into the ground, reducing the risk caused by thrown objects.

Specific blades for any application
Only BEFCO offers you the choice of fine cut blades, dethatching blades, reverse “Y” blades, paddle blades or hammers blades allowing the operators to set up the unit specifically for their application.

ASAE Cat. 1 & 2 quick hitch compatible
Compatible with ASAE Cat. 1 and 2 quick hitches.

Specifications

Model H70-072
HP 35-70
Working width 72"
Overall width 85"
Weight lbs 955
Ship lbs 1,145
Rotor rpm 2,080
Blades tip speed (ft/min) 8,464
# of Blades 80
Cutting height 3/4"-6"
# Belts & types 2 CX
Driveline 1 3/8" ASAE cat. 4 overrunning clutch
