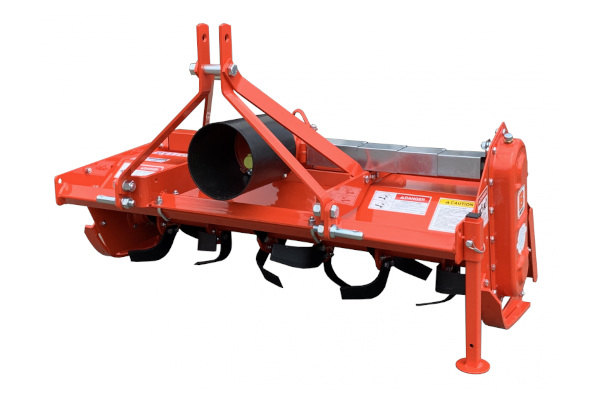

Befco T30-242
Features
- Highly engineered & rugged gearbox with cooling fins.
- Smooth manual side-shift system.
- Adjustable side skids for working depth control.
- Heavy duty shielded PTO shaft with shear bolt coupling 1 3/8" ASAE cat. 2) or slip clutch safety (1 3/8" ASAE cat. 3).
- Max. working depth 7 1/4".
- Parking stand.
- Reinforced lateral ASA #60 chain drive transmission in oil bath.
- Four blades per flange.
- High carbon solid steel round rotor shaft allows for a deeper working depth.
- Outward turned blades keep the rotor supports clean and maximize working width.
- Heavy duty full size blades.
- 3 point linkage, cat. 1.
Specifications
| Model | T30-242 |
| HP | 20-30 |
| Working width | 42" |
| Overall width | 47" |
| Weight lbs | 352 |
| Ship lbs | 441 |
| Side-shift | 10" |
| # Flanges | 5 |
| # Blades | 20 |
| Chain Sprockets | 14-16 |
| Rotor rpm | 205 |
| Maximum working depth | 7 1/4" |
| Driveline 1 3/8" | ASAE cat. 3 slip clutch |
