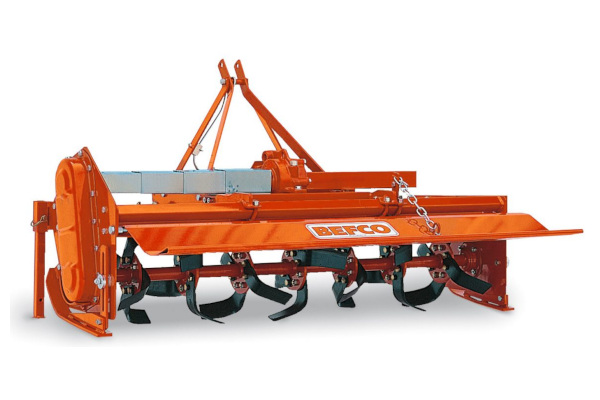

Befco T40-158
Features
- Highly engineered & rugged gearbox.
- Smooth manual side-shift system.
- Adjustable side skids for working depth control.
- Heavy duty shielded PTO shaft with shear bolt coupling (1 3/8" ASAE cat. 3).
- Exchangeable sprockets for two working speeds.
- Parking stand.
- 3 point linkage, cat. 1.
- Lateral ASA #80 chain drive transmission in oil bath.
- Four blades per flange.
- High carbon solid steel round rotor shaft allows for a deeper working depth.
- Outward turned blades keep the rotor supports clean and maximize working width.
- Heavy duty full size blades.
- Wear protection on chain case.
- Max. working depth 7 1/4".
Specifications
| Model | T40-158 |
| HP | 30-40 |
| Working width | 58" |
| Overall width | 63" |
| Weight lbs | 451 |
| Ship lbs | 540 |
| Side-shift | 18" |
| # Flanges | 7 |
| # Blades | 28 |
| Chain Sprockets | 11-14 |
| Rotor rpm | 231/375 |
| Maximum working depth | 7 1/4" |
| Driveline 1 3/8" | ASAE cat. 3 shear bolt |
