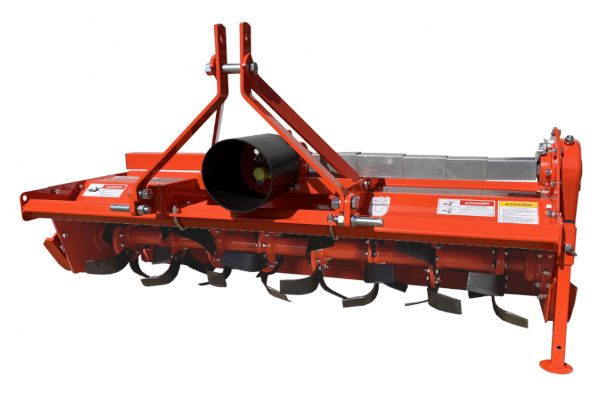

Befco T50-350
Features
- Highly engineered & rugged gearbox.
- Smooth manual side-shift system.
- Adjustable side skids for working depth control.
- Heavy duty shielded PTO shaft with slip clutch safety (1 3/8" ASAE cat. 4).
- Exchangeable sprockets for two working speeds.
- Max. working depth 8 3/8".
- Wear protection on chain case.
- Parking stand.
- Lateral ASA #100 chain drive transmission in oil bath.
- Standard six blades per flange for greater stability and finer soil pulverization.
- Flanged rotor shaft for easy removal & service.
- Outward turned blades keep the rotor supports clean and maximize working width.
- Heavy duty full size tiller blades.
- 3 point linkage, cat. 1.
Specifications
| Model | T50-350 |
| HP | 25-50 |
| Working width | 50" |
| Overall width | 55" |
| Weight lbs | 481 |
| Ship lbs | 625 |
| Side-shift | 14" |
| # Flanges | 6 |
| # Blades | 36 |
| Chain Sprockets | 10-13 |
| Rotor rpm | 226/383 |
| Maximum working depth | 8 3/8" |
| Driveline 1 3/8" | ASAE cat 4. slip clutch |
