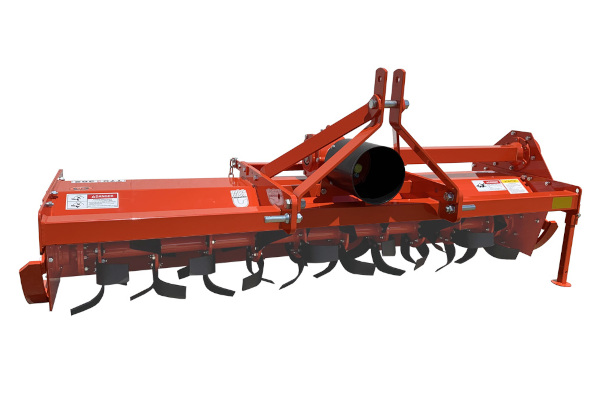

Befco T70-382
Features
- Highly engineered & rugged gearbox.
- Adjustable side skids for working depth control.
- Heavy duty shielded PTO shaft with slip clutch safety (1 3/8" ASAE cat. 6).
- Flanged rotor shaft for easy removal & service.
- Parking stand.
- 3 point linkage, cat. 1.
- Max. working depth 8 3/4".
- Lateral ASA #100 chain drive transmission in oil bath.
- Standard six blades per flange for greater stability and finer soil pulverization.
- Outward turned blades keep the rotor supports clean and maximize working width.
- Heavy duty full size blades.
- Wear protection on chain case.
- Max. working depth 8 3/4"
Specifications
| Model | T70-382 |
| HP | 40-70 |
| Working width | 82" |
| Overall width | 88" |
| Weight lbs | 879 |
| Side-shift | 1009 |
| # Flanges | 10 |
| # Blades | 60 |
| Chain Sprockets | 12-14 |
| Rotor rpm | 221 |
| Maximum working depth | 8 3/4" |
| Driveline 1 3/8" | ASAE cat. 6 slip clutch |
