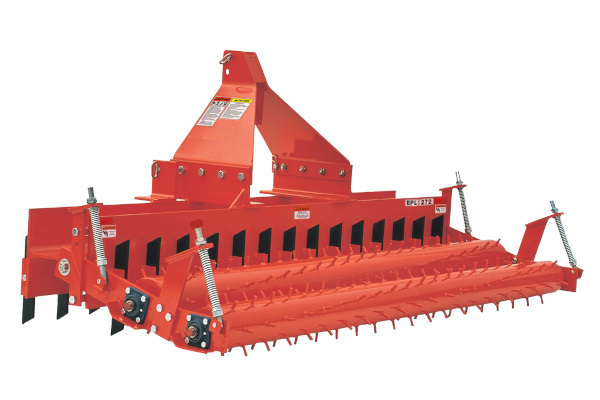

Befco BPL-284
Features
- 3/8" steel spikes fully welded in a timed scroll pattern on a heavy walled roller with two 160 lbs. compression springs.
- Optional 2nd spiked roller available with two 80 lbs. compression springs.
- 12" (59.4 lb/ft) frame beam.
- Reversible heat treated 1/2" x 2" shanks.
- 3 point linkage, cat. 1.
- 6 5/8" diameter spiked roller tube.
- Self aligning 1" bearings on roller.
- Formed plate "A" frame.
Specifications
| Model | BPL-284 |
| HP | 40-90 |
| Hich | Cat. 1 |
| Working width | 84" |
| Overall width | 88" |
| Weight lbs | 875 |
| Ship lbs | 940 |
| # of Shanks | 29 |
| # of Roller spikes | 124 |
| Shank spacing | 2 13/16" |
| Shank penetration | 4 1/2" |
| Maximum spring pressure | 160 ea |
