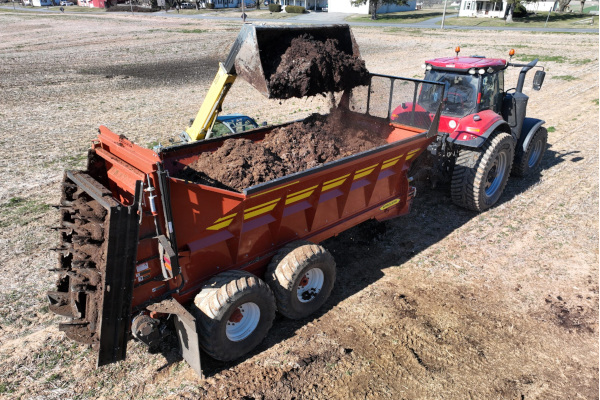

Pequea VHS-600
Features
Pequea quality in a 600 cu/ft manure spreader!
Boost your farm’s productivity with the VHS-600 vertical or horizontal beater manure spreader, the perfect balance of power, capacity, and robust design. Offering a substantial 600 cu/ft carrying capacity, this workhorse can handle even the most demanding tasks with ease. Crafted from rugged Cor-ten steel, it promises longevity and exceptional performance in the harshest conditions.
Its 30-inch beater ensures an evenly distributed spread, optimizing soil fertility and crop yield. Make the smart choice for your farm; invest in the VHS-600, and watch your productivity soar.
Specifications
| Overall Length | 27′ 11″ |
| Overall Width | 9′ 4″ |
| Overall Height | 10'9″ (14'6″ w/ End Gate Up) |
| Main Box Length | 18′ |
| Loading Height | 8′ |
| Box Width (Bottom/Top Width) | 60″ At Floor - 86″ At Top of Flare |
| Carrying Capacity | 34,000 lb |
| Tongue weight | 1207 lb. + Payload x 0.24 = Tongue Weight |
| Capacity | 14.8 cu yd/400 cu ft (Struck) 22.2 cu yd/605 cu ft (Heaped) |
| PTO RPM | Slip Clutch 1000 rpm 1-3/8″ Spline |
| Beater Diameter | 30″ |
| Beater RPM | 420 rpm |
| Adjustable Floor Speed | Infinite 0-15 ft/min |
| Floor Chain Type | WH124 Engineering Class Pintle Chain w/ Stainless Steel Pins (Rated 60,000lbs) |
| Hopper Box Construction | Cor-Ten Steel |
| Hydraulic Remote Requirements | 2 Set of Hydraulics Remotes |
| Hydraulic Requirements | 10 GPM at 2000 psi |
| Min PTO HP | 150 Min. HP |
| Axle | Dual Tandem w/ Walking Beam |
| Tire | 560/60R 22.5 |
| Empty Weight | 13,300 lb |
