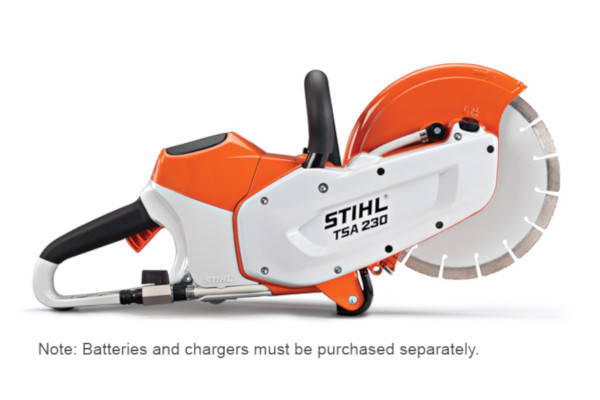

Stihl TSA 230
Features
Reduced-Emission Engine Technology - Caring for Nature
The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
Sealed control unit
Sealed control unit for improved water resistance while wet cutting.
Magnesium Guard
The cutting wheel guard is made from lightweight and durable magnesium to improve maneuverability.
Spindle Locking Mechanism
The spindle locking mechanism allows the user to lock the wheel rotation for easier removal of the wheel.
Water Connection
Water connection with shut-off valve and quick connector.
STIHL Electric Motor
Maintenance-free brushless DC motor features low noise levels and reduced vibration.
Sealed Belt Drive
Maintenance-free sealed belt drive.
Electronic Coaster Brake
Stops wheel after use.
Lightweight Portability
Great for maneuverability and extended use.
Specifications
| POWER SOURCE | Battery |
| WEIGHT | 8.6 lbs. |
| MAXIMUM CUTTING DEPTH | 2.75 in. |
| MAXIMUM WHEEL SIZE | 9 in. |
| ARBOR SIZE | .875 in. |
| BATTERY SERIES | AP Series |
| RUN TIME (w/ AP 200) | 14 min. |
| RUN TIME (w/ AP 100) | 7 min. |
| RUN TIME (w/ AP 300 S) | 22 min. |
| RUN TIME (w/ AP 300) | 18 min. |
| VOLTAGE | 36 volt |
| Note: The battery working time specifications for each battery charge are estimates and may vary depending on how the tool is used and what is being cut. | |
