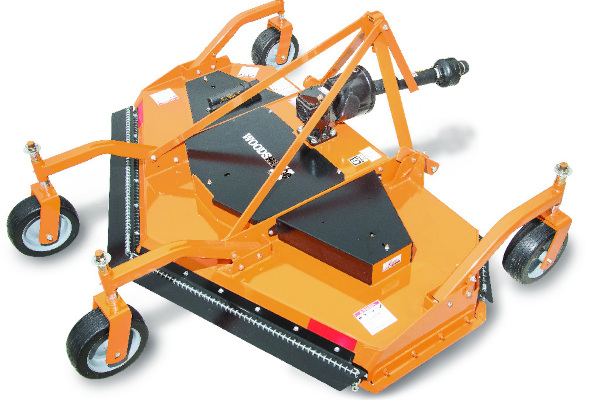

Woods RD990-X
Features
- Tapered roller bearings in caster wheels provide superior performance and longevity in rough conditions
- Replaceable side skids attach to heavy side frames for durability and long life
- Takes down grass and light weeds, and leaves a high grade finish cut behind
- Features a Quick-Change blade system, an extra strong double B-section belt, and anti-wrap bars that prevent damage caused by material wrapped around lower spindle
- Deep deck and stump jumper blade carrier with free-swinging blades ideal for rough grass
- Floating lower hitch points allow the mower to follow uneven terrain
- Chain shielding standard
Specifications
| Tractor PTO HP | 45-75 |
| Tractor PTO Speed (rpm) | 540 |
| Cutting Width (in) | 90 |
| Hitch/Quick-hitch Capable | CAT 1 & CAT 2/Quick-hitch Capable |
| Belt | Powerband with double B-section |
| Belt Adjustment | Spring-loaded idler |
| Blade Overlap (in) | 2 |
| Blade Spindles/Bearings | 3 cast iron housing, greasable tapered roller bearings |
| Blade Tip Speed (fpm) | 17,000 |
| Caster Wheels (in) | 13 x 5-10 solid or 13 x 5-6 pneumatic |
| Deck Thickness | 7 gauge |
| Driveline | CAT 4 |
| Gearbox HP | 75 *Gearbox horsepower ratings listed are based on field testing. |
| Overall Width (in) | 97 |
| Side Skirt | .31 x 8.5 in with skid shoes |
| Weight (lbs) | 1,333 |
| Cutting Height (in) | 1.5-7 |
| Chain Shielding | Standard |
